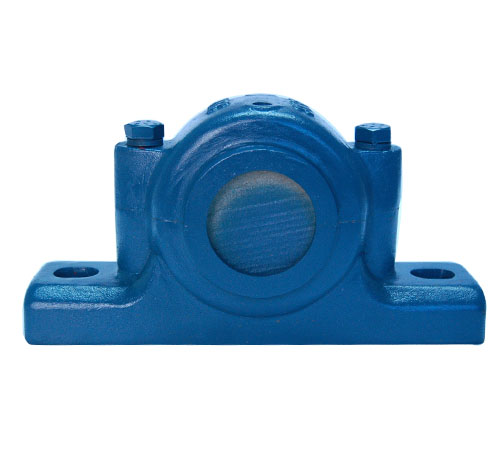

SN3100(SSN3100) Series
Housing No.
Shaft
Dimensions(mm)
Housing
Bearing
Adapter
Locating Ring
dia
D
a
b
c
g
h
L
W
m
n
u
v
f1
f2
S
d2
d3
weight
No.
Sleeve
d1
H8
H12
h12
H13
-2
-4
H12
H12
kg  ≈
　
　
Number
Qty.
SN3122
SSN3122
100
180
380
110
40
66
112
160
218
320
60
26
32
8
10.8
M24
M16
102
125
17
23122K
H3122
SR180x10
1
SN3124
SSN3124
110
200
410
120
45
72
125
175
240
350
70
26
32
8
10.7
M24
M16
113
135
20
23124K
H3124
SR200x10
1
SN3126
SSN3126
115
210
410
120
45
74
140
185
270
350
70
26
32
8
10.7
M24
M16
118
140
25
23126K
H3126
SR210x10
1
SN3128
SSN3128
125
225
445
130
50
78
150
175
285
380
70
28
36
9
12.2
M24
M20
128
154
30
23128K
H3128
SR225x10
1
SN3130
SSN3130
135
250
500
150
50
90
150
205
305
420
80
33
42
9
12.2
M30
M24
138
164
38
23130K
H3130
SR250x10
1
SN3132
SSN3132
140
270
530
160
60
96
160
220
325
450
90
33
42
10
13.7
M30
M24
143
173
46
23132K
H3132
SR270x10
1
