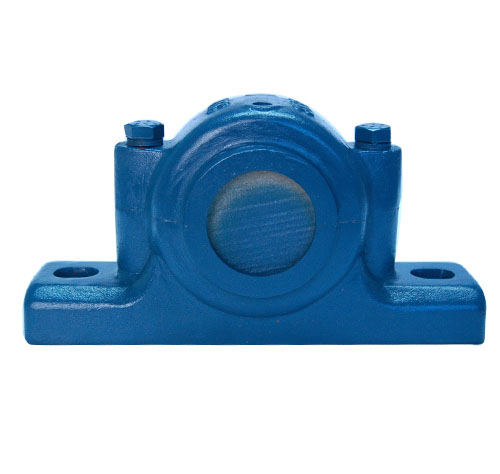

SN3000(SSN3000) Series
Housing No.
Shaft
Dimensions(mm)
Housing
Bearing  No..
Adapter Sleeve
Locating Ring
dia
weight
d1
D
a
b
c
g
h
L
W
m
n
u
v
f1
f2
S
d2
d3
kg
　
H8
H12
h12
H13
-2
-4
H12
H12
≈
Number
QTY.
SN3024
SSN3024
110
180
380
110
40
56
112
160
218
320
60
26
32
8
10.7
M24
M16
113
135
17
23024K
H3024
SR180x10
1
SN3026
SSN3026
115
200
410
120
45
62
125
175
240
350
70
26
32
8
10.7
M24
M16
118
140
20
23026K
H3026
SR200x10
1
SN3028
SSN3028
125
210
410
120
45
63
140
185
270
350
70
26
32
9
12.2
M24
M16
128
154
25
23028K
H3028
SR210x10
1
SN3030
SSN3030
135
225
445
130
50
66
150
175
283
380
70
28
36
9
12.22
M24
M20
138
164
30
23030K
H3030
SR225x10
1
SN3032
SSN3032
140
240
460
130
40
70
150
190
300
390
70
28
38
10
13.7
M24
M20
143
173
37
23032K
H3032
SR240x10
1
SN3034
SSN3034
150
260
540
160
50
77
160
205
325
450
90
33
42
10
13.7
M30
M20
153
183
47
23034K
H3034
SR260x10
1
SN3036
SSN3036
160
280
550
160
50
84
170
215
345
470
90
33
42
10
13.7
M30
M20
163
193
55
23036K
H3036
SR280x10
1
SN3038
SSN3038
170
290
550
160
60
85
170
235
345
470
90
33
42
10
13.7
M30
M24
173
203
53
23038K
H3038
SR290x10
1
