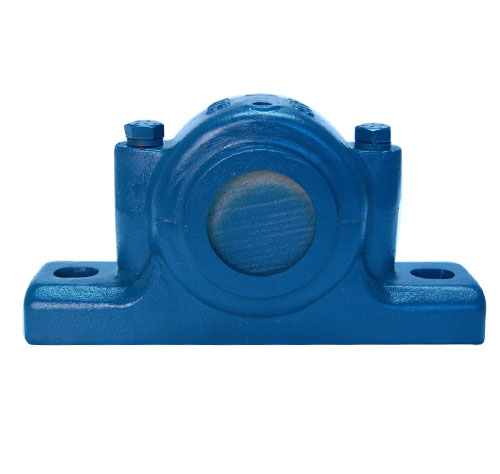

SD500 Series
Housing No.
Shaft dia
Dimensions(mm)
Housing
Bearing No.
Adapter  Sleeve
Locating Ring
d1(mm)
weight
　
D
a
b
c
g
h
L
W
m
n
u
v
s
d2
d3
f1
f2
kg
Number
QTY
　
H8
H12
h12
H12
H12
H13
≈
SD534
150
310
620
230
60
106
180
270
360
510
140
36
52
M30
153
183
10
13.8
92
22234K
H3134
SR310x10
2
SD536
160
320
650
240
60
106
190
280
380
540
150
36
52
M30
163
193
10
13.8
105
22236K
H3136
SR320x10
2
SD538
170
340
700
260
65
112
200
290
400
570
160
36
55
M30
173
203
10
13.8
125
22238K
H3138
SR340x10
2
SD540
180
360
740
270
65
118
210
300
420
610
170
36
55
M30
183
213
10
13.8
140
22240K
H3140
SR360x10
2
SD544
200
400
820
300
70
128
240
330
475
680
190
43
62
M36
203
240
11
15.7
200
22244K
H3144
SR400x10
2
SD548
220
440
880
310
85
140
260
340
515
740
200
43
62
M36
223
260
11
15.7
230
22248K
H3148
SR440x10
2
SD552
240
480
940
340
85
150
280
370
560
790
210
43
62
M36
243
286
12
17.4
300
22252K
H3152
SR480x10
2
SD556
260
500
990
370
100
150
300
390
590
830
230
50
70
M42
263
306
12
17.4
350
22256K
H3156
SR500x10
2
SD560
280
540
1060
390
100
160
325
410
640
890
250
50
70
M42
283
332
13
19.1
450
22260K
H3160
SR540x10
2
SD564
300
580
1110
420
110
170
355
440
690
930
270
58
77
M48
303
352
13
19.1
550
22264K
H3164
SR580x10
2
