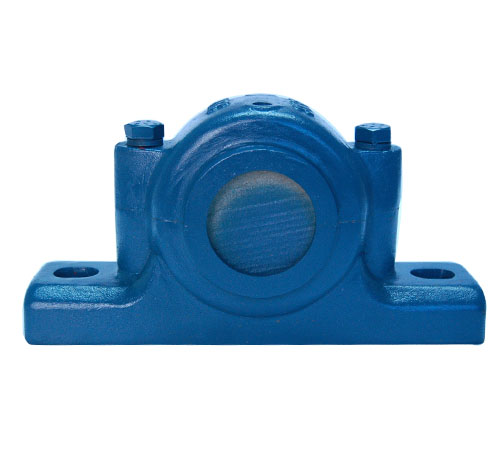

SD3000 Series
Housing No.
Shaft dia
Dimensions(mm)
Housing
Bearing  No.
Adapter  Sleeve
Locating Ring
d1
weight
(mm)
D
a
b
c
g
h
L
W
m
n
u
v
s
d2
d3
f1
f2
kg
Number
QTY
　
H8
H12
h12
H12
H12
H13
≈
SD3034
150
260
540
200
50
77
160
230
320
450
110
36
52
M30
153
183
10
13.8
62
23034K
H3034
SR260x10
1
SD3036
160
280
560
220
50
84
170
250
340
470
120
36
52
M30
163
193
10
13.8
78
23036K
H3036
SR280x10
1
SD3038
170
290
560
220
50
85
170
250
345
470
120
36
52
M30
173
203
10
13.8
82
23038K
H3038
SR290x10
1
SD3040
180
310
620
230
60
92
180
270
360
510
140
36
52
M30
183
213
10
13.8
92
23040K
H3040
SR310x10
1
SD3044
200
340
700
260
65
100
200
290
400
570
160
36
55
M30
203
240
11
15.7
125
23044K
H3044
SR340x10
1
SD3048
220
360
740
270
65
102
210
300
420
610
170
36
55
M30
223
260
11
15.7
140
23048K
H3048
SR360x10
1
SD3052
240
400
820
300
70
114
240
330
475
680
190
43
62
M36
243
286
12
17.4
200
23052K
H3052
SR400x10
1
SD3056
260
420
860
320
85
116
250
350
500
710
200
43
62
M36
263
306
12
17.4
230
23056K
H3056
SR420x10
1
SD3060
280
460
920
330
85
128
280
360
550
770
210
43
62
M36
283
332
13
19.1
290
23060K
H3060
SR460x10
1
SD3064
300
480
940
340
85
131
280
370
560
790
210
43
62
M36
303
352
13
19.1
300
23064K
H3064
SR480x10
1
SD3068
320
520
1020
370
100
143
310
400
615
860
230
50
70
M42
323
372
13
19.1
400
23068K
H3068
SR520x10
1
SD3072
340
540
1060
390
100
144
325
410
640
890
250
50
70
M42
343
392
13
19.1
450
23072K
H3072
SR540x10
1
SD3076
360
560
1080
390
100
145
340
410
665
900
260
50
70
M42
363
412
13
19.1
470
23076K
H3076
SR560x10
1
