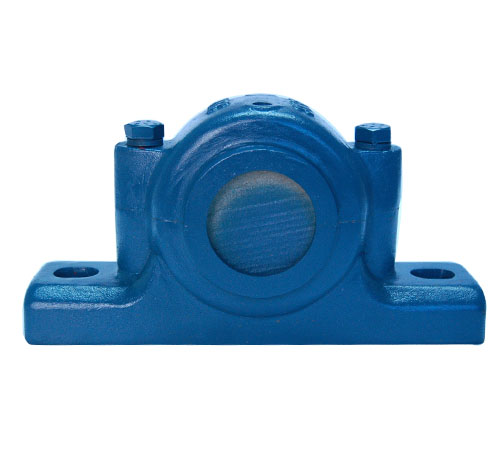

S3000K Series
Housing  No.
Shat dia
Dimensions(mm)
Housing
Bearing  No.
Adapter  Sleeve
Locating Ring
d1 (mm)
h
W
L
a
b
c
m
g
f1
f2
d2
d3
v
u
s
weight
Number
QTY
　
h12
H12
H12
H12
H12
kg   ≈
S3024K
110
112
215
150
390
110
40
320
56
8
10.7
113
135
30
36
M24
16.5
23024K
H3024
R180/10
1
S3026K
115
125
239
160
420
120
45
350
62
8
10.7
118
140
30
36
M24
19.3
23026K
H3026
R200/10
1
S3028K
125
140
259
170
420
120
45
350
63
9
12.2
128
154
30
36
M24
24.6
23028K
H3028
R210/10
1
S3030K
135
150
278
175
460
130
45
380
66
9
12.2
138
164
30
36
M24
29
23030K
H3030
R225/10
1
S3032K
140
150
288
190
470
130
50
390
70
10
13.7
143
173
30
36
M24
37
23032K
H3032
R240/10
1
S3034K
150
160
320
200
540
160
55
450
77
10
13.7
153
183
36
48
M30
45
23034K
H3034
R260/10
1
S3036K
160
170
340
210
560
160
55
470
84
10
13.7
163
193
36
48
M30
65
23036K
H3036
R280/10
1
S3038K
170
170
353
210
560
160
55
470
85
10
13.7
173
203
36
48
M30
67
23038K
H3038
R290/10
1
S3040K
180
180
373
235
615
170
60
515
92
10
13.7
183
213
36
48
M30
72
23040K
H3040
R310/10
1
S3044K
200
200
408
255
690
190
70
580
100
11
15.5
203
240
42
50
M36
98
23044K
H3044
R340/10
1
S3048K
220
210
433
265
720
200
75
610
102
11
15.5
223
260
42
50
M36
110
23048K
H3048
R360/10
1
S3052K
240
240
485
285
820
220
80
680
114
12
17.3
243
286
52
70
M45
148
23052K
H3052
R400/10
1
S3056K
260
250
505
295
860
230
80
720
116
12
17.3
263
306
52
70
M45
165
23056K
H3056
R420/10
1
