W Series

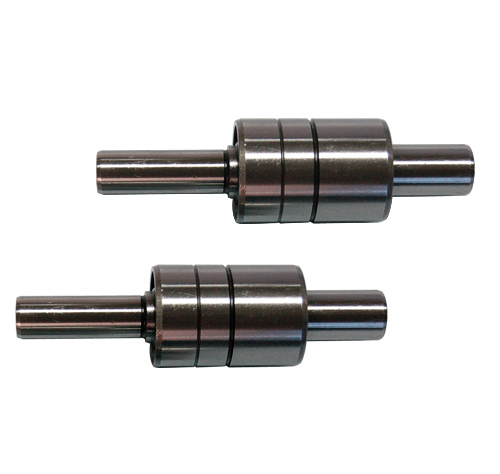

W Series Dimensions (Ball-ball Type)
ZIX
NSK
FAG
DIMENSION (inch)
A
B
C
D
WIB163073
885154
W2289
2.89
0.16
1.20
0.6267
WIB163083
885165
W2325
3.25
0.16
1.56
0.6267
WIB163090
　
W2355-3
3.55
0.67
1.35
0.6267
WIB163093
885330
W2366
3.66
0.73
1.40
0.6267
WIB163094
　
W2371
3.71
0.69
1.50
0.6267
WIB163096
　
W2375-3
3.76
0.56
1.67
0.6267
WIB163098
885307
W2385
3.86
0.67
1.66
0.6267
WIB1630102
885321
W2401-3
4.02
0.67
1.82
0.6267
WIB1630103
885140
W2406-1
4.06
0.92
1.61
0.6267
WIB1630105
885329
W2415-1
4.15
0.80
1.82
0.6267
WIB1630106
885097
W2417-2
4.17
0.81
1.83
0.6267
WIB1630109
885107B
W2431
4.31
0.58
2.20
0.6267
WIB1630110
885332
W2434
4.35
0.84
1.97
0.6267
WIB1630110A
885332
W2434-1
4.35
0.84
1.97
0.6267
WIB1630111
885528
W2435
4.36
0.77
2.06
0.6267
WIB1630112
885167
W2439
4.39
0.94
1.92
0.6267
WIB1630112A
885167D
W2440-4
4.40
1.15
1.72
0.6267
WIB1630112B
　
W2441-1
4.41
1.06
1.82
0.6267
WIB1630114A
885156
W2446
4.47
1.08
1.86
0.6267
WIB1630116
885337A
W2454
4.55
0.81
2.21
0.6267
WIB1630116A
885162
W2456
4.56
1.10
1.93
0.6267
WIB1630116B
　
W2456-1
4.57
1.07
1.97
0.6267
WIB1630119
885118
W2468
4.69
1.47
1.69
0.6267
WIB1630119A
　
W2468-1
4.69
1.47
1.69
0.6267
WIB1630120
885221
W2472
4.72
1.44
1.75
0.6267
WIB1630121
885222
W2475
4.75
1.50
1.72
0.6267
WIB1630121A
885105
W2476-2
4.76
1.16
2.07
0.6267
WIB1630122D
885476
W2481
4.81
1.34
1.94
0.6267
WIB1630122B
885168C-1
W2481-1
4.81
1.13
2.16
0.6267
WIB1630123
　
W2485
4.85
0.77
2.56
0.6267
WIB1630124
885100B
W2486-2
4.87
1.25
2.09
0.6267
WIB1630128
885141
W2503
5.03
1.02
2.48
0.6267
WIB1630128A
885151B
W2503-6
5.03
1.75
1.75
0.6267
WIB1630129
885169-1
W2507
5.08
1.25
2.30
0.6267
WIB1630135A
885437
W2532
5.33
2.00
1.79
0.6267
WIB1630136A
885158P
W2537
5.37
1.54
2.30
0.6267
WIB1630139
　
W2547
5.47
0.91
3.03
0.6267
WIB1630139A
885603
W2548-1
5.49
1.38
2.58
0.6267
WIB1630143
885144
W2562
5.63
1.58
2.52
0.6267
WIB1630146
　
W2575
5.76
2.51
1.71
0.6267
WIB1630146A
885694
W2575-2
5.75
2.43
1.79
0.6267
WIB1630162
885117
W2637
6.37
2.30
2.55
0.6267
WIB1630102
885321
W3399
4.00
0.69
1.78
0.6275
WIB1630122
885168AA
W3481-5
4.81
1.58
1.70
0.6275
WIB1630122A
885168AA
W3481-6
4.81
1.58
1.70
0.6275
WIB1630132
885521
W3520-2
5.20
1.58
2.09
0.6275
WIB1630132A
885521
W3520-3
5.20
1.58
2.09
0.6275
WIB1630133
885611
W3522-1
5.22
1.17
2.52
0.6275
WIB1630154
885613
W3607
6.07
1.17
3.37
0.6275
WIB1630154A
885613
W3607-1
6.07
1.17
3.37
0.6275
WIB163093OS
885330OS
W6366
3.66
0.73
1.40
0.6290
WIB163098OS
885307OS
W6385
3.86
0.67
1.66
0.6290
WIB1630102OS
885321OS
W6401-3
4.02
0.67
1.82
0.6290
WIB1630103OS
885140OS2
W6406-1
4.06
0.92
1.61
0.6290
WIB1630105OS
885329OS
W6415-1
4.15
0.80
1.82
0.6290
WIB1630109OS
885111DOS2
W6428-1
4.28
1.08
1.67
0.6290
WIB1630110COS
885524SOS2
W6433-2
4.33
1.14
1.66
0.6290
WIB1630110OS
885332OS
W6434
4.36
0.77
2.06
0.6290
WIB1630112OS
885167OS2
W6439
4.39
0.94
1.92
0.6290
WIB1630112AOS
885167DOS2
W6440-4
4.40
1.15
1.72
0.6290
WIB1630113OS
885155OS
W6445
4.45
1.25
1.67
0.6290
WIB1630113AOS
885156OS
W6446
4.47
1.08
1.86
0.6290
WIB1630114OS
885697OS2
W6450-2
4.50
1.26
1.71
0.6290
WIB1630116OS
885337AOS
W6454
4.55
0.81
2.21
0.6290
WIB1630116AOS
885162OS
W6456
4.56
1.10
1.93
0.6290
WIB1630119OS
885118OS2
W6468
4.69
1.47
1.69
0.6290
WIB1630119BOS
885118OS
W6468-1
4.69
1.47
1.69
0.6290
WIB1630119AOS
885135SOS2
W6470
4.70
1.28
1.89
0.6290
WIB1630121OS
885105OS2
W6476
4.76
1.16
2.07
0.6290
WIB1630122OS
　
W6478-1
4.79
1.24
2.02
0.6290
WIB1630122DOS
885476OS2
W6481
4.81
1.33
1.95
0.6290
WIB1630122BOS
885168COS2
W6481-1
4.81
1.13
2.16
0.6290
WIB1630123OS
　
W6484
4.84
1.45
1.86
0.6290
WIB1630124OS
885100BOS2
W6486-2
4.87
1.25
2.09
0.6290
WIB1630128OS
885141OS2
W6503
5.03
1.02
2.48
0.6290
WIB1630129OS
885169OS2
W6507
5.08
1.25
2.30
0.6290
WIB1630134OS
885113BOS2
W6527
5.27
1.68
2.06
0.6290
WIB1630136OS
885093SOS2
W6534-1
5.34
2.06
1.75
0.6290
WIB1630136AOS
885158POS2
W6537
5.37
1.54
2.30
0.6290
WIB1630138OS
885158OS2
W6543
5.44
1.61
2.30
0.6290
WIB1630139OS
885603OS2
W6548-1
5.49
1.38
2.58
0.6290
WIB1630141OS
885248OS2
W6555
5.55
1.93
2.09
0.6290
WIB1630141AOS
　
W6556
5.56
1.53
2.50
0.6290
WIB1630143AOS
885144OS2
W6562
5.62
1.58
2.52
0.6290
WIB1630143OS
885144OS2
W6562-1
5.62
1.58
2.52
0.6290
WIB1630146OS
885694SOS2
W6575-1
5.75
2.43
1.79
0.6290
WIB1630150OS
885116COS2
W6590-2
5.90
1.38
2.99
0.6290
WIB1630162OS
885117OS
W6637
6.37
2.30
2.55
0.6290
WIB1630102OS
885321OS2
W7399-1
4.00
0.69
1.78
0.6295
WIB1630122BOS
885168HOS2
W7481-1
4.81
1.13
2.16
0.6295
WIB1630122OS
885168AAOS
W7481-6
4.81
1.58
1.70
0.6295
WIB1630132OS
885521OS2
W7520-2
5.20
1.58
2.09
0.6295
WIB1630133OS
885611OS
W7522-1
5.22
1.17
2.52
0.6295
WIB1630154OS
885613OS
W7607-1
6.07
1.17
3.37
0.6295
